Bore Pile Water Well Drilling Rigs Suppliers

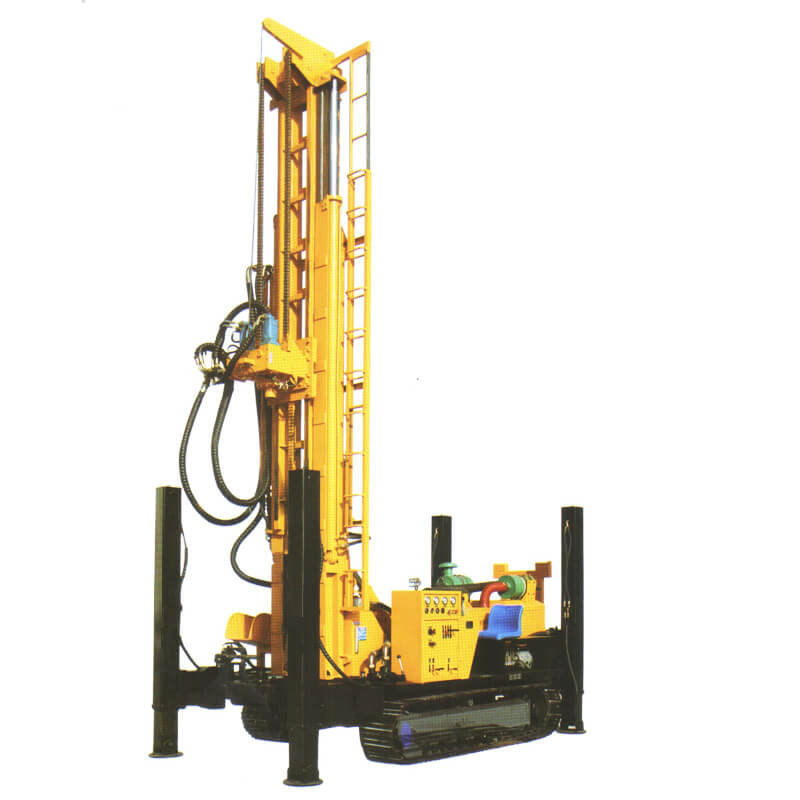

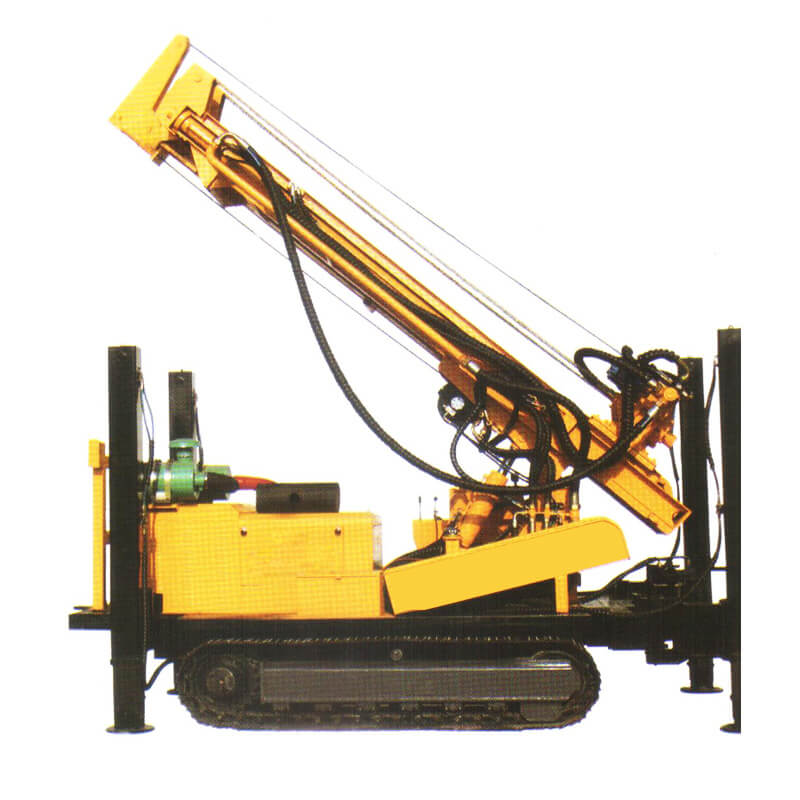

Cheaper Price Bore Pile Drilling Rigs Pilling Rotary Rig New Drilling Machine,In order to meet various applications, the main parameters of the drill can be adjusted, such as speed, torque, feed pressure, reverse feed pressure, feed speed, lifting speed, etc.$68,217.00>=1 Sets

  • Weight:13000 KG
  • Drilling Depth:Max.700m
  • Marketing Type:New Product 2021
  • Dimension(L*W*H):6300*2300*2950
  • Drilling Diameter:300mm, 140mm, 250mm, 350mm, 400mm
Description
Technical Data
More Details
Contact Us Now
Description
Quick Details
Applicable Industries:
Building Material Shops, Construction works , Energy & Mining
Showroom Location:
Philippines, Mexico, Russia
Condition:
New
Power Type:
Diesel
Place of Origin:
Shanghai, China
Brand Name:
Sollant
Usage:
Water Well
Dimension(L*W*H):
6300*2300*2950
Weight:
13000 KG
Warranty:
1 Year
Marketing Type:
New Product 2021
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Other
Key Selling Points:
Long Service Life
Drilling Diameter:
300mm, 140mm, 250mm, 350mm, 400mm
Drilling Depth:
Max.700m
Mobility:
Mobile
Local Service Location:
Philippines, Mexico, Russia
After-sales Service Provided:
Video technical support
Certification:
CE/ISO
Packaging & Delivery
Port
Qingdao/Shanghai

Product Description
MAIN FEATURES OF WATER DRILLING MACHINE

1. Widely used in drilling, rock and soil drilling, geothermal drilling, mine exploration, offshore drilling, etc. The down-the-hole crawler drilling rig can be operated under any different working conditions through a pneumatic drilling rig driven by an air compressor, and has a high drilling speed even in the rock.
2. Perfect hydraulic control maneuverability. In order to meet various applications, the main parameters of the drill can be adjusted, such as speed, torque, feed pressure, reverse feed pressure, feed speed, lifting speed, etc.
3. Rotation, feeding and lifting are driven by the top. It is more convenient to change rods, reduces the time of rod changing, and is more conducive to subsequent drilling.
4. Multifunctional drilling The drilling rig can perform various drilling methods such as down-the-hole drilling, gas-proof circulation drilling, anchor drilling, rotary drilling, while drilling, and core drilling. Optional components can be added according to customer needs, such as mud pumps, foam pumps, generators and different types of drawworks.
5. Low operating cost The downhole drilling for rock has the lowest drilling cost and the highest work efficiency.
6. Tracked chassis with long-stroke jack cylinder The long-stroke jack cylinder is convenient for the truck to load itself during transportation, and the crawler has better maneuverability in the mud operation site.
7. The feed pressure can be adjusted to obtain the best feed force at different drilling depths.
Technical Data

More Details
Shanghai Sollant Energy Saving Technology Co., Ltd. is located in Jiading disrtrict Shanghai City which is China's logistics
capital with great transportation convenience. Sollant is a comprehensive screw air compressor and drilling rig manufacturer that engaged in R & D,design, production and sales. It has a plant of 10,000 square meters, including a large production workshop, a comprehensivefirst-class exhibition hall and a testing laboratory.

Sollant has excellent mechanical engineering designers, an experienced staff team and a professional management team. The production concept focuses on energy-saving and is committed to perfecting and improving the technological process in order to get the core technology of super frequency energy-saving, achieving the characteristics of mute, durability, power saving and safety.
Q1: Are you a factory or trade company?
A1: We are an integration of industry and trade. The factory and international trade department are in the same place.

Q2: What the exact address of your company?
A2: C109, No.215, Songri Center, Beihongqiao, Jiading District, Shanghai, China

Q3: Warranty terms of your machine?
A3:24 months for the whole machine, 36 months for air end, technical support for life.

Q4: How long is your delivery?
A4: 25-30 days after receiving your 30% down payment.

Q5: Terms of payment?
A5: T/T and L/C at sight.

Q6: What is the MOQ?
A6: 1 PC.

Q7: Can you accept OEM orders?
A7: Yes, with a professional design team, OEM orders are highly welcome.

Q8: Can you accept color customization?
A8: Yes we can.

Q9: Will you provide some spare parts for the water drilling machine?
A9: Yes, of course.

Q10: What's your factory's production capacity?
A10: About 500 units per month.Thank you.
